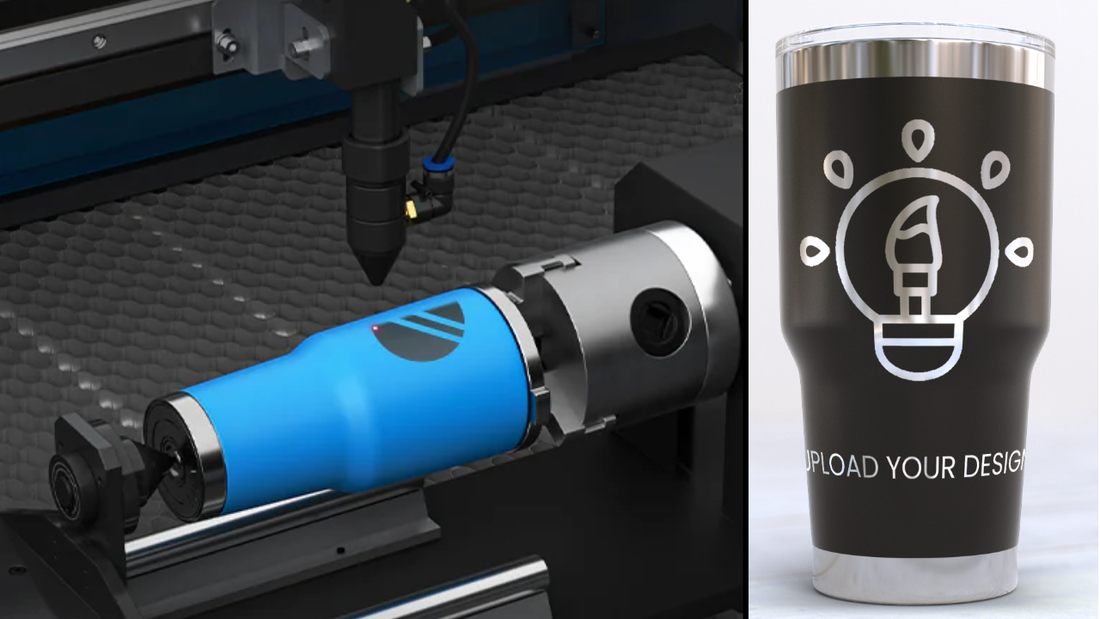

How to Properly Prepare an Image for Laser Engraving a Powder-Coated Tumbler

Introduction

Decorated tumblers have been the rage for quite some time.  Lately we are seeing the growth of Powder-Coated tumblers as manufacturers are getting more and more creative with various colors and textures.  This is leading to beautiful designs being rendered as engravings on Powder-Coated tumblers.

What is powder coating and why vector line art works best

Powder coating is a dry finishing process where electrostatically charged powder particles are sprayed onto a metal surface and then cured under heat to create a durable, uniform finish. Unlike traditional paint or vinyl applications, powder coating creates a thick, resilient layer that bonds molecularly with the metal substrate. Line drawings work exceptionally well for powder coating because the process excels at creating bold, solid areas of color with crisp edges.

The electrostatic application method naturally wants to follow defined boundaries, making clean lines and simple shapes ideal candidates. Complex gradients, fine details, or photographic images with subtle color variations simply cannot be reproduced effectively through powder coating, as the process is fundamentally designed for solid, opaque coverage rather than nuanced color transitions.

Free and Online Resources for converting images to vector line art

If you have an image that you would like to use for engraving onto a powder coated surface such as a tumbler, you will need to convert that image to vector line art to make it laser-engrave ready.

For this purpose we recommend a free online tool called Vector Dad.  Vector dad will accept your image in it's online generator, and provide a vector line drawing output that can be used for laser engraving on pwder coated surfaces, such as tumblers.  You can access the Vector Dad tool here:

https://vectordad.com/photo-to-outline/

Access our video tutorial for using the vectordad tool here:

Once you have a vector line art version of your image, you can then edit it and clean up and remove any little pieces of the image you do not want, or use it as is.

As always, if you have any questions about this process, please start a chat and we will be happy to help.

Original Image



Laser-ready Line Art Version

Here is some additional technical information you may find useful:

Overview of bitmap tracing as the solution

Bitmap tracing, also known as vectorization, is the process of converting pixel-based raster images (like JPEGs or PNGs) into mathematical vector graphics composed of paths, curves, and shapes. This conversion is essential for powder coating applications because it transforms complex photographic images with thousands of individual pixels into simplified line drawings with distinct, solid areas.

The tracing process analyzes the original image and creates vector paths that follow color boundaries and contrast edges, effectively "drawing" over the photograph to create a simplified version that maintains the essential visual elements while eliminating the fine details that powder coating cannot reproduce. Modern bitmap tracing tools use sophisticated algorithms to automatically detect edges and create smooth curves, though manual refinement is often necessary to achieve the best results for powder coating applications.

Understanding Powder Coating Requirements

Why solid colors and clean lines are essential

Powder coating technology is fundamentally based on applying uniform layers of colored powder that melt and flow together during the curing process to create a smooth, continuous surface. This process requires clearly defined boundaries between different colored areas, as the powder particles need distinct edges to adhere to properly without bleeding or mixing.

Clean lines ensure that masking can be applied accurately when multiple colors are used, and they prevent the powder from settling in unintended areas during application. Solid colors are essential because powder coating cannot create gradients, transparencies, or subtle color blending – each area must be a single, uniform color applied at full opacity. Any attempt to reproduce fine details, textures, or gradual color changes will result in a muddled, unprofessional appearance that fails to capture the intended design.

Technical limitations of powder coating processes

The powder coating process has inherent physical limitations that directly impact design possibilities. The minimum line width that can be reliably reproduced is typically around 1-2 millimeters, as thinner lines may not receive adequate powder coverage or may be obscured during the masking process. Fine details smaller than this threshold will either disappear entirely or merge with adjacent elements, creating an unclear final result.

Additionally, the electrostatic application method can cause "picture framing" effects where powder builds up more heavily along edges, potentially distorting very fine features. The curing temperature, typically between 350-400°F, can cause slight flow and settling of the powder, which means that extremely precise registration between colors or ultra-sharp corners may soften slightly. Understanding these limitations helps explain why converting complex images to simplified line drawings is not just preferred but necessary for successful powder coating applications.

Preparing Your Image: What Makes a Good Candidate

High contrast images work best

Images with strong contrast between light and dark areas provide the clearest foundation for successful bitmap tracing because the tracing algorithms rely on detecting distinct boundaries between different tonal values. High contrast images typically feature bold subjects against plain backgrounds, dramatic lighting, or naturally occurring strong color separations that translate well into the simplified color palette required for powder coating.

These images allow the tracing software to easily identify where one element ends and another begins, resulting in clean, accurate vector paths. Conversely, images with subtle gradations, soft shadows, or similar tonal values throughout will confuse the tracing algorithm, leading to either overly complex results with too many unnecessary details or oversimplified results that lose important visual elements of the original design.

Simple compositions vs. complex photographs

Simple compositions featuring a single main subject, minimal background elements, and clear visual hierarchy are ideal candidates for powder coating conversion because they naturally align with the medium's strengths in reproducing bold, graphic elements. A portrait silhouette, a company logo, or a simple landscape with distinct foreground and background elements will trace cleanly and reproduce effectively on a tumbler.

Complex photographs with multiple subjects, busy backgrounds, intricate textures, or overlapping elements create challenges during the tracing process, often resulting in either an overly complicated design that's difficult to powder coat cleanly, or an oversimplified version that loses the essential character of the original image. When evaluating potential images, consider whether the main visual impact comes from overall shape and composition rather than fine details – if the image would still be recognizable as a simple silhouette, it's likely a good candidate for conversion.

Bitmap Tracing Fundamentals

What is bitmap tracing (raster to vector conversion)

Bitmap tracing is the process of analyzing a pixel-based raster image and creating corresponding vector graphics that reproduce the essential visual information using mathematical paths instead of individual pixels. While raster images are composed of a grid of colored dots (pixels), vector graphics use geometric shapes, curves, and lines defined by mathematical equations that can be scaled to any size without quality loss.

The tracing process examines color boundaries, contrast edges, and tonal transitions in the original image to determine where to place vector paths that will recreate the image's appearance. This conversion is crucial for powder coating because vector graphics can be easily edited, scaled, and separated into the distinct color areas required for the coating process, while also providing the clean, crisp edges that powder coating reproduces most effectively.

Difference between automatic and manual tracing

Automatic tracing uses algorithmic analysis to detect edges and create vector paths without user intervention, making it fast and convenient for simple images with clear contrast. The software analyzes pixel patterns, identifies color boundaries, and generates paths based on predetermined parameters like sensitivity, smoothing, and color reduction settings. While automatic tracing works well for high-contrast images with simple compositions, it often produces either too many unnecessary details or oversimplified results that miss important elements.

Manual tracing involves the user actively drawing vector paths over the original image, providing complete control over which elements to include, how much detail to preserve, and where to place path points. This approach takes more time and skill but allows for artistic interpretation and refinement that ensures the final result will work well for powder coating applications while maintaining the essential character of the original design.

Understanding paths, nodes, and vector graphics

Vector graphics are constructed from paths – continuous lines or curves that define the outline of shapes and objects within the design. Each path is composed of anchor points (nodes) connected by line segments or curves, with the software calculating the mathematical relationships between these points to create smooth, scalable graphics. Nodes can be corner points that create sharp angles, smooth points that maintain continuous curves, or combination points that allow for both straight and curved segments emanating from the same location.

Understanding this structure is important for powder coating preparation because each closed path typically represents a separate color area that will need individual masking and application. Paths that aren't properly closed or that have unnecessary complexity can create problems during the powder coating process, so learning to evaluate and edit these fundamental vector elements ensures the final design will translate successfully to the physical tumbler.

Advanced Techniques for Better Results

Pre-processing images for optimal tracing

Before beginning the tracing process, strategic image preparation can dramatically improve the quality of the final vector result and reduce the need for extensive manual cleanup. This preparation typically involves adjusting the image size to a manageable resolution that maintains important details while reducing file complexity, cropping to eliminate unnecessary background elements that might confuse the tracing algorithm, and rotating or straightening the image to ensure optimal path generation.

Additionally, removing dust spots, scratches, or other artifacts from the original image prevents these imperfections from being traced as intentional design elements. For images with multiple subjects or complex backgrounds, consider isolating the main subject using selection tools before tracing, as this allows the algorithm to focus on the important elements without being distracted by extraneous details that won't translate well to powder coating anyway.

Adjusting contrast and brightness before tracing

Manipulating the tonal range of your image before tracing can make the difference between a clean, usable result and a chaotic mess of unnecessary paths. Increasing contrast helps separate the main subject from the background and makes color boundaries more distinct, allowing the tracing algorithm to create cleaner edge detection and more accurate path placement. Brightness adjustments can help bring out details in overly dark areas or tone down blown-out highlights that might otherwise be lost in the tracing process.

Consider using levels or curves adjustments to maximize the separation between the darkest and lightest areas of your image while maintaining detail in the midtones. For some images, converting to high-contrast black and white before tracing can eliminate color variations that aren't relevant to the final powder coating design while making the tracing process more predictable and controllable.

Simplifying complex areas manually

Even after optimal pre-processing and automatic tracing, complex areas of an image often require manual intervention to create results suitable for powder coating. This might involve combining multiple small paths that represent texture or fine detail into single, larger shapes that will reproduce more effectively in powder coating. Use the vector editing tools to merge adjacent paths of similar colors, eliminate tiny details that won't be visible at the final size, and smooth out jagged edges that result from the automatic tracing of pixelated areas.

Pay particular attention to areas where the original image has gradual color transitions – these often trace as multiple separate paths that should be simplified into single color areas. The goal is to maintain the essential visual character of the original while creating a design that can be practically executed in powder coating with clean, bold results.

Combining automatic tracing with manual touch-ups

The most effective approach to creating powder coating-ready designs often involves using automatic tracing as a starting point and then refining the results through manual editing. Begin with automatic tracing using conservative settings that capture the main elements without excessive detail, then systematically review each path to determine whether it contributes to the overall design impact. Delete paths that represent minor details or artifacts, combine paths that should be single color areas, and manually redraw sections where the automatic tracing has created awkward or impractical shapes.

Use the vector editing tools to adjust node placement for smoother curves, ensure that all paths that should be closed are properly closed, and verify that color areas are clearly separated without tiny gaps that might cause powder coating application problems. This hybrid approach leverages the speed of automatic processing while ensuring the final result meets the specific requirements of powder coating applications.

File Format Requirements

Best formats for powder coating applications

The ideal file format for powder coating applications depends on your service provider's capabilities, but vector formats are strongly preferred because they maintain crisp edges at any size and can be easily separated into individual color layers. SVG (Scalable Vector Graphics) files are excellent because they're widely supported, maintain full vector information, and can be opened by most design software for further editing if needed.

AI (Adobe Illustrator) and EPS (Encapsulated PostScript) formats are also preferred by many powder coating professionals because they preserve all vector data and can include specific color information and layer organization. If vector formats aren't available, high-resolution PNG files with transparent backgrounds can work, but they should be created at least 300 DPI at the final application size to ensure clean edges when the design is scaled for production.

Vector vs. raster considerations

Vector graphics offer significant advantages for powder coating applications because they can be scaled to any size without quality loss, maintain perfectly sharp edges at all resolutions, and can be easily separated into individual color layers for masking purposes. Each color area in a vector file can be selected and output separately, making it simple for powder coating technicians to create the masks needed for multi-color applications.

Raster images, while sometimes acceptable, can become pixelated when scaled and may have soft edges that don't translate well to the sharp boundaries required for clean powder coating results. Additionally, raster images often contain thousands of color variations that must be simplified for powder coating, while vector graphics can be created with the exact colors needed for the final application, eliminating guesswork and ensuring color accuracy.

Resolution and sizing guidelines

When working with raster elements or creating vector graphics from raster sources, resolution becomes critical for achieving professional results in powder coating applications. For raster images that will be used as reference for tracing or as final artwork, maintain at least 300 DPI at the intended final size to ensure adequate detail for clean edge detection and sharp reproduction.

Vector graphics should be created at actual size when possible, or at least at a size that maintains proper proportions when scaled to the final tumbler dimensions. Consider that most tumblers have a curved surface, so designs may need to be adjusted slightly to account for distortion when wrapped around the cylindrical shape. Provide your powder coating service with sizing specifications and, when possible, create artwork that includes bleed areas beyond the intended design boundaries to accommodate any positioning adjustments needed during application.

Troubleshooting Common Problems

Images that won't trace cleanly

Some images resist clean tracing due to fundamental characteristics that conflict with the requirements of vector conversion and powder coating application. Images with very soft focus, extensive blur, or gradual transitions throughout often lack the distinct edges that tracing algorithms need to create clean paths, resulting in either overly complex traces with hundreds of tiny paths or oversimplified results that lose essential details.

Similarly, images with very low contrast, where subjects blend into backgrounds without clear separation, will struggle to trace effectively because the software cannot determine where one element ends and another begins. When encountering these problematic images, consider whether the essential visual impact can be achieved through manual recreation rather than automatic tracing, or whether a different source image might better serve the intended purpose while being more suitable for the powder coating process.

Too much or too little detail

Finding the right balance of detail for powder coating applications requires understanding both the technical limitations of the process and the viewing distance at which the final product will be seen. Too much detail results in designs that are either impossible to execute cleanly in powder coating or that create muddy, unclear results when viewed at normal distances. This often happens when tracing algorithms capture every small variation in the original image, creating hundreds of tiny paths that represent texture, shadows, or minor color variations that won't be visible or meaningful in the final application.

Conversely, too little detail can make designs appear crude or lose the essential character that made the original image appealing. The solution typically involves iterative refinement, testing different tracing settings, and manually editing results to preserve important visual elements while eliminating details that don't contribute to the overall impact at the intended viewing size.

Broken lines and gaps

Discontinuous paths and small gaps between elements can create significant problems in powder coating applications because they allow powder to migrate into unintended areas or prevent proper masking for multi-color designs. These issues often result from automatic tracing of images with soft edges, compression artifacts, or areas where colors blend gradually rather than meeting with sharp boundaries. Broken lines can also occur when tracing settings are too aggressive in smoothing or simplifying paths, causing the algorithm to eliminate connection points that are essential for maintaining design integrity.

Address these problems by carefully reviewing all paths in your vector editing software, using the join or connect tools to close gaps, and manually drawing connecting segments where automatic tracing has failed to maintain continuity. Pay particular attention to areas where different colors meet, as these boundaries are critical for successful powder coating masking and application.

Overly complex results

Automatic tracing often produces results with far more complexity than necessary for powder coating applications, including numerous overlapping paths, tiny details that won't be visible in the final product, and excessive anchor points that make editing difficult and increase the likelihood of application problems. This complexity typically stems from the algorithm's attempt to faithfully reproduce every variation in the original image, including texture, shadows, and subtle color changes that are irrelevant to powder coating reproduction.

Simplify overly complex results by systematically reviewing each path and asking whether it contributes to the essential visual impact of the design. Delete paths that represent minor details, merge adjacent paths of similar colors into single shapes, and use the simplify or smooth tools in your vector editing software to reduce the number of anchor points while maintaining the overall shape integrity. Remember that successful powder coating designs rely on bold, simple shapes rather than intricate detail, so aggressive simplification is often not only acceptable but preferable for the best final results.
